A paint spray gun is a tool that uses air pressure to atomize and apply paint in a fine, even mist across any surface. It covers large areas faster than a brush or roller, delivers a smooth, consistent finish, and works on walls, furniture, fences, and more.
Choosing the right type of paint spray gun matters because each model suits different jobs and paint types. This article walks you through how they work, which types exist, what paints to use, how to get the best results, and the trade-offs you need to know before picking one up.

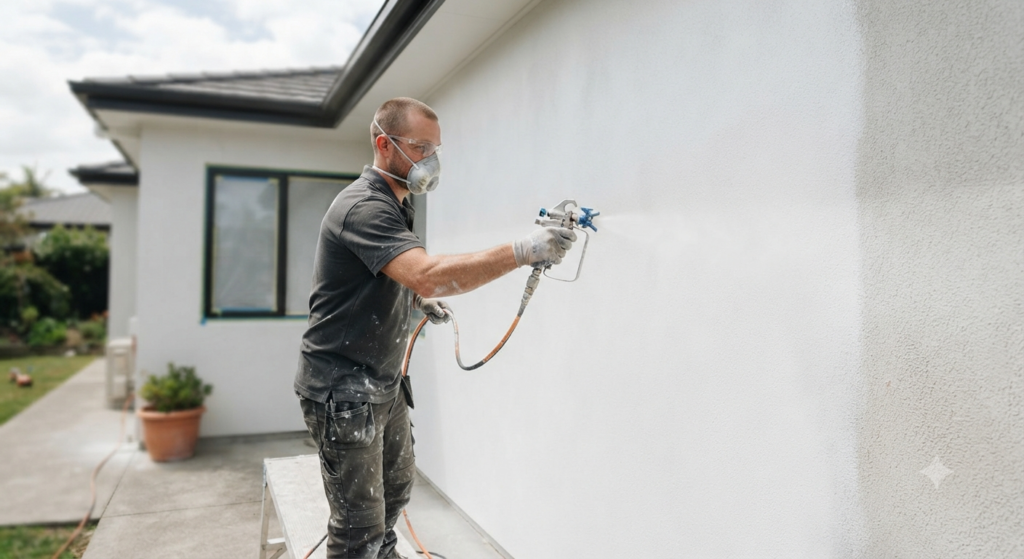

What Is a Paint Spray Gun?
A paint spray gun is a hand-held painting device that pushes liquid paint through a small nozzle using compressed air or an internal turbine. The paint breaks apart into tiny droplets and fans out in a controlled spray pattern, landing evenly on the surface in front of it.
This technology replaces the back-and-forth motion of a brush and eliminates the texture left by rollers. It is widely used in automotive refinishing, furniture coating, cabinet painting, and large wall surfaces where a smooth, professional finish is the goal.
There are three main categories of paint spray gun available today:
Types of Paint Spray Guns
- HVLP (High Volume Low Pressure): Uses a large volume of air at low pressure. Very efficient and produces minimal overspray. Best for detailed work, cabinets, trim, and furniture.
- LVLP (Low Volume Low Pressure): Similar to HVLP but uses even less air. Great for smaller compressors and detailed finishing jobs.
- Airless Spray Gun: Pumps paint at high pressure without air mixing. Ideal for large surfaces like exterior walls, fences, and decks. Very fast.
- Compressed Air (Conventional): The original spray gun style. Produces a lot of overspray but gives a very fine finish. Common in auto body and woodworking shops.
How Does a Paint Spray Gun Work?
The working principle of a paint spray gun is simple. Paint is fed into the gun from a cup or container attached to it. When you pull the trigger, air or mechanical pressure forces the paint through the nozzle tip.
The nozzle breaks the paint into a fine mist through a process called atomization. Air cap holes then shape that mist into a fan-shaped spray pattern, which you guide across the surface in smooth, overlapping passes.
The width and shape of the spray pattern can usually be adjusted with a dial on the gun. You can also control the paint flow rate and the air pressure to suit the type of paint and surface you are working on.
Most guns let you choose between a round spray pattern for small areas and a wide flat fan for broad surfaces. Getting this setup right before you start is the key to avoiding drips and uneven coverage.
Paint Spray Gun Types at a Glance
| Type | Best For | Overspray Level | Skill Level |
|---|---|---|---|
| HVLP | Cabinets, trim, furniture | Low | Beginner to intermediate |
| LVLP | Detail work, small projects | Low | Beginner |
| Airless | Large walls, decks, fences | Medium | Intermediate |
| Conventional | Auto body, fine finishing | High | Advanced |
What Type of Paint Do You Use for a Paint Spray Gun?
Not all paints work straight out of the tin in a paint spray gun. The right paint depends on the gun type and the nozzle tip size. Using the wrong consistency is one of the most common mistakes beginners make.
Latex and water-based paints work well in most HVLP and airless guns. They clean up easily with water and are the safest choice indoors. Oil-based paints and primers also work but require mineral spirits for cleanup and need proper ventilation.
Stains, lacquers, and varnishes can be sprayed too, but they are thinner by nature and require a finer nozzle tip to avoid runs.
Many paints need to be thinned before spraying. You can test the right thickness using a viscosity cup. As a rough rule, paint should flow freely but still coat the back of a spoon. If it drips off too fast, it will create a runny finish. If it is too thick, the paint spray gun will clog or spit.
If you are unsure about the right setup for your project, the team at True Coat can help you figure out what approach suits your space best.
How to Get the Best Results from a Paint Spray Gun
Getting good results comes down to preparation, settings, and technique. Here is how to set yourself up for success.
Prepare the Surface
Clean the surface thoroughly. Remove grease, dust, and loose paint. Sand rough areas smooth and apply primer if the surface is bare or porous. Skipping this step leads to peeling and poor adhesion no matter how good your spray technique is.
Thin the Paint Correctly
Check the paint manufacturer’s recommendation for spraying. Thin it gradually and test on a piece of cardboard first. A properly thinned paint will atomize cleanly through your paint spray gun without drips or spitting.
Set the Right Distance and Speed
Hold the gun 20 to 30 centimetres from the surface for most jobs. Move at a consistent speed in overlapping passes. Too close causes drips. Too far creates a dry, grainy texture. Practice on scrap material before starting your actual project.
Keep Your Passes Overlapping
Each pass should overlap the previous one by about 50 percent. This gives even coverage without thin spots. Keep the gun moving at all times. Stopping while the trigger is pulled will leave a heavy wet spot that drips.
Protect What You Are Not Painting
Cover floors, windows, trim, and anything nearby with plastic sheeting and tape. Overspray from a paint spray gun travels further than you expect, especially outdoors on a windy day.
Common Paint Spray Gun Problems and Fixes
| Problem | Likely Cause | Fix |
|---|---|---|
| Spitting or clogging | Paint too thick | Thin the paint and clean the nozzle |
| Drips or runs | Too close or moving too slowly | Increase distance, speed up passes |
| Uneven pattern | Blocked air cap holes | Clean air cap with solvent and a brush |
| Dry, grainy finish | Too far or paint too thin | Move closer and reduce thinning |
What Are the Disadvantages of a Paint Spray Gun?
A paint spray gun is fast and efficient, but it comes with real trade-offs that every user should understand before buying one.
Setup and cleanup take time. You need to mix and thin the paint, set up masking, and clean the gun thoroughly after every use. If paint dries inside the gun, the internal parts can clog and require soaking in solvent.
Overspray is another issue. Even HVLP guns produce some overspray, and conventional and airless guns produce a lot. This wastes paint and requires thorough masking to protect adjacent surfaces.
Spray guns also need practice to use well. An inconsistent hand speed or angle leads to uneven coats. Beginners often get better results starting with smaller projects to build their technique.
For large exterior projects or anything requiring a truly flawless finish, working with professional painters usually delivers better value. Learn more about what makes a quality finish in our guide on the [best approach to exterior painting for house projects](https://truecoatpaint.ca/what-is-the-best-approach-to-exterior-painting-for-house-projects/).
Things to Know Before Using a Paint Spray Gun
- Ventilation matters: Always work in a well-ventilated space. Paint fumes build up quickly, especially with oil-based products.
- Wear protection: Use a respirator mask, safety glasses, and gloves. Atomized paint particles are fine enough to inhale if you are not protected.
- Test before you commit: Always do a test pass on cardboard or scrap wood to check your settings before spraying the actual surface.
- Clean immediately: Clean your spray gun right after every use. Dried paint is much harder to remove and can permanently block the tip or needle.
- Check the tip size: Different nozzle tip sizes suit different paint thicknesses. Using the wrong size is the fastest route to clogs and a poor finish.
- Thin correctly: Over-thinning makes paint runny. Under-thinning clogs the gun. Follow the product’s mixing guide and test consistency before filling the cup.
If you want to see what professional spray painting looks like on real projects, browse the completed work on True Coat’s project gallery.
Is It Worth Getting a Paint Spray Gun?
For most homeowners tackling large projects like painting fences, decks, or exterior walls, a paint spray gun is absolutely worth it. It cuts painting time significantly and produces a smoother finish than a roller on most surfaces.
For smaller indoor jobs or intricate trim work, a quality brush and roller may still be the faster, lower-mess option. The learning curve and cleanup time can outweigh the speed advantage on smaller tasks.
If you are painting cabinets, doors, or furniture where finish quality really matters, an HVLP paint spray gun is the best tool available to a DIYer.
For Winnipeg homeowners unsure about tackling a spray painting project themselves, residential painting services from a licensed team can save a lot of time and stress.
Ready for a Professional Finish in Winnipeg?
True Coat is a licensed and insured painting company serving residential and commercial clients throughout Winnipeg. Whether you need a flawless interior finish, a refreshed exterior, or specialized coatings applied with professional equipment, the team delivers quality results on every project. To get a free estimate, contact True Coat today.
Frequently Asked Questions About Paint Spray Guns
Is it worth getting a paint sprayer?
Yes, a paint spray gun is worth it for large or smooth-surface projects. It covers more area faster than a brush or roller and delivers a finer, more even finish on walls, furniture, decks, and cabinets. For small touch-up jobs, a brush may still be quicker when you factor in setup and cleanup time.
What is the best spray gun for painting?
HVLP spray guns are the best all-round option for most users. They produce low overspray, work well with most water-based paints, and give a clean, smooth finish. Airless guns are better for very large exterior surfaces where speed matters more than fine detail.
What type of paint do you use for a spray gun?
Water-based latex paints are the most common and easiest to use in a paint spray gun. They thin with water, clean up easily, and work well in HVLP and airless models. Oil-based paints, stains, and lacquers also spray well but need solvent-based thinners and extra ventilation.
What is a spray paint gun called?
A spray paint gun is also commonly called a paint sprayer, spray gun, or airbrush depending on the size and type. Industrial versions are called spray guns or spray pistols. Handheld consumer versions are often marketed simply as paint sprayers.
What are the disadvantages of a paint sprayer?
The main disadvantages are setup time, cleanup, overspray, and a learning curve. A paint spray gun requires thorough masking to protect surrounding areas, the paint must be thinned correctly, and the gun needs to be cleaned completely after every use. Beginners may also need practice to achieve an even coat.
